PROVIA OPTIONS PAGE
PPI Systems offers a full selection of hardware and software options to ensure each ProVia solution meets your application needs.

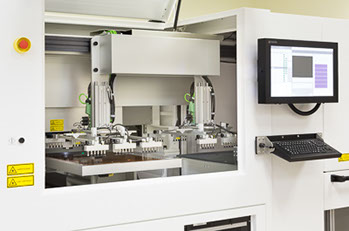

Autoloader
Manual load, full size dual-head automation, and compact single-head automaton
Compact tray autoloader within the core system footprint.
Automatic pickup and vacuum zones for multiple panel formats.
Slipsheet pass-through handling for both autoloader styles.
Configurable for large panel and continuous web processing
Compatible with roll-to-roll web handlers
![](/wp-content/uploads/2021/11/j1a3375_400px.jpg)

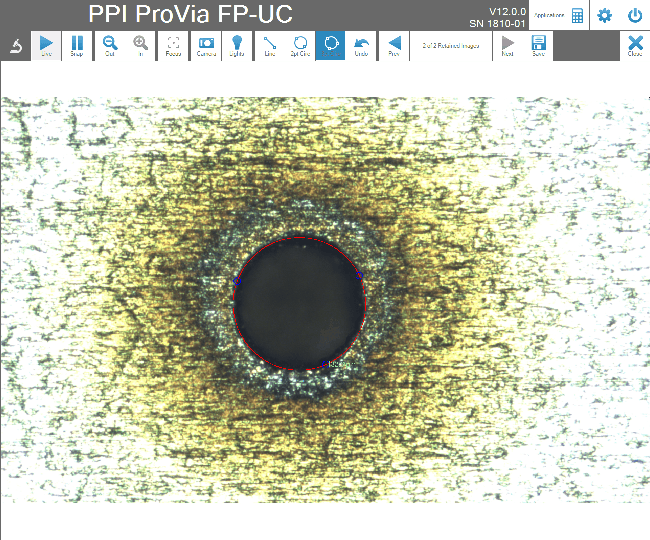

Integrated Inspection Microscope
A 2.3MP HD color camera can inspect microvias after processing. Zoom optics are designed for viewing microvias in the 50 – 200 µm diameter range. On-screen measurements can be made and images saved for later use. Powerful white LED light sources provide both coaxial and low angle ring illumination.
![micro via](/wp-content/uploads/2021/04/microscope_via-top_cr_sm.png)
Flat-top Beam Homogenizer
As an alternative to the normal Gaussian intensity profile, flat-top CO2 spots permit drilling and pocketing operations with a very consistent process and less risk of sensitive inner layer damage. The user can even switch between Gaussian and flat-top spots within the same job.
![laser via driller](/wp-content/uploads/2021/04/flat-top-350um-in-pi.jpg)
Dual-head, Dual-panel Drilling
The single-laser systems (UV-only, CO2-only) can be configured with two independent galvo stations and two vacuum tables for dual-panel operation. The ProVia software is highly adaptable, able to process different jobs independently on two panels through two galvo heads.
![resistor trimmer autoloader](/wp-content/uploads/2021/04/compact-loader-in-fp-c2.png)
Barcode or 2-D Matrix Code Reading
Used for panel identification, and can be manual or automated.
![bar code](/wp-content/uploads/2021/04/white-light-2d-code.jpg)
Panel Thickness Measurement Probe
An ultra-reliable electro-mechanical height probe is available to measure / verify the panel thickness prior to processing. Helps prevent drilling the wrong panels or with the wrong job.
![laser via driller autoloader](/wp-content/uploads/2021/04/ProVia-load-heads-482px.jpg)

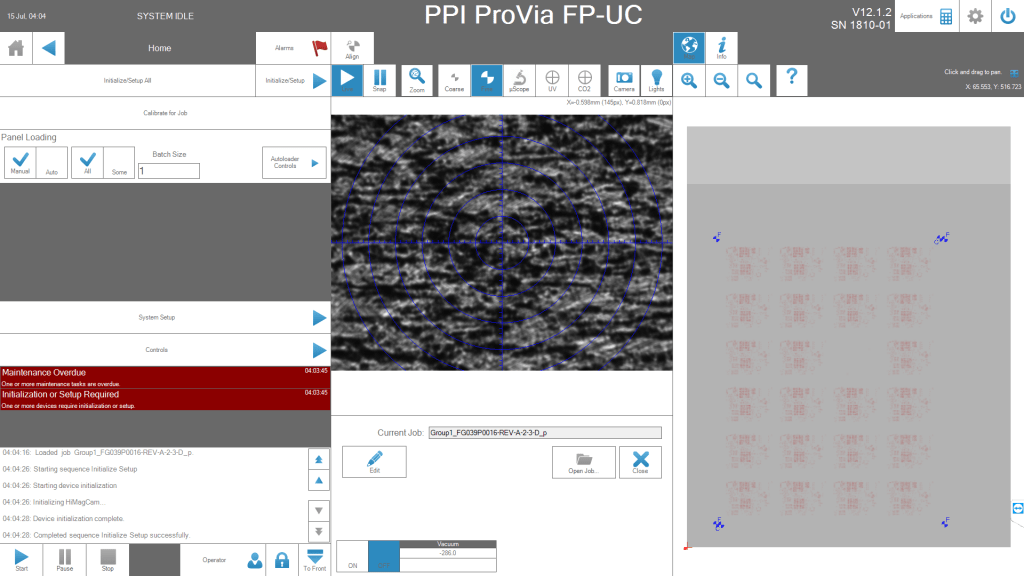

Networking Software with Automatic File Retrieval and Job Creation
The system can even accommodate a tray of mixed panels, using optional OCR or barcode to read panel ID and load the appropriate job from files on the system or network.
![ProSys laser driller software](/wp-content/uploads/2021/04/mainscreen-1024x576.png)
